Products/modules/HUB-VM102

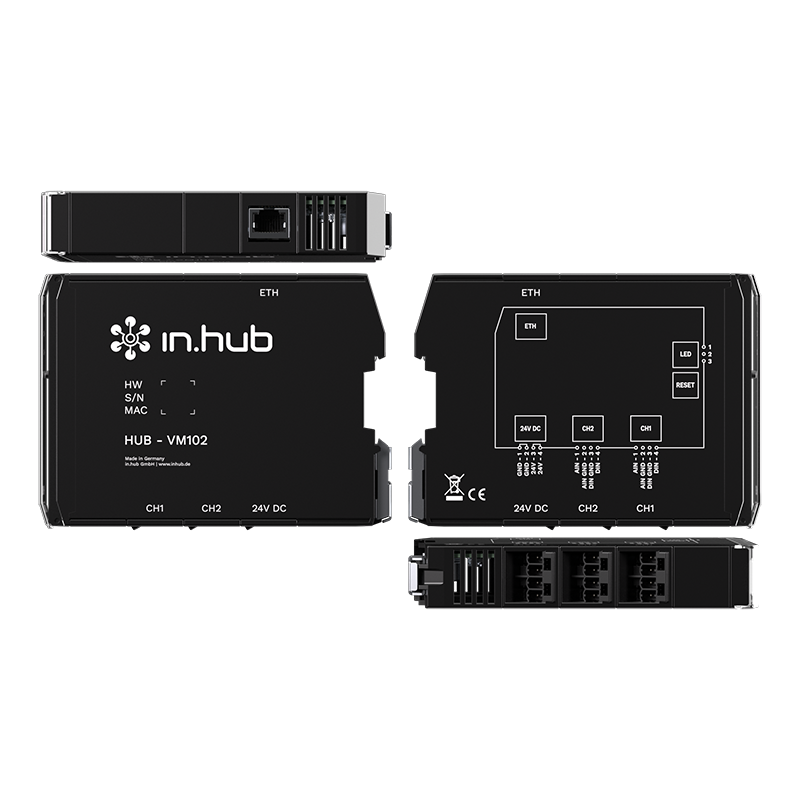

Capture vibration, structure-borne sound and acoustic signals with the HUB-VM102
Application examples HUB-VM102
- Acoustic and structure-borne sound measurement
- Monitoring of generators, motors, gearboxes, turbines, pumps, fans, compressors, machines, bearings
- Quality assurance
- Wear detection | Predictive Maintenance
Features HUB-VM102
- 2 x IEPE inputs
- Compatible with ICP interface from PCB Synotech
- 24 bit | 48 kHz sampling
- Frequency range 0.5 to 19200 Hz
- RMS, peak and frequency range
- Storage and processing of measured values
- Configurable filters (low pass, band pass, high pass)
- Trigger function for event triggered monitoring
- 2 x digital inputs 30V & 100 kHz for speed calibration
Things to know about the vibration measurement module HUB-VM102
In connection with the HUB-GM200, the power supply and simultaneous data communication take place without additional cabling via backplane bus connectors. With a resolution of 24-bit each for complete data acquisition, the signals are processed directly by FFT (Fast Fourier Transformation) using a high-performance processor. Thus, conclusions on frequency and amplitude changes of rotating machines, motors, couplings and mechanical parts can be mapped.
