in.hub IoT modules
Special modules from in.hub - maximum performance in the smallest space
With the in.hub IoT expansion modules, you can easily configure your individual status monitoring or expand your gateway with individual features without additional effort. Either you combine the add-ons with the already existing in.hub devices or you use them manufacturer-independently as stand-alone without gateway with other systems. The added value remains the same: You receive specific conclusions about the function and process parameters of your machines and systems. Or if you work in a region where power outages are commonplace, you can easily add a real-time clock to our modules and gateways.

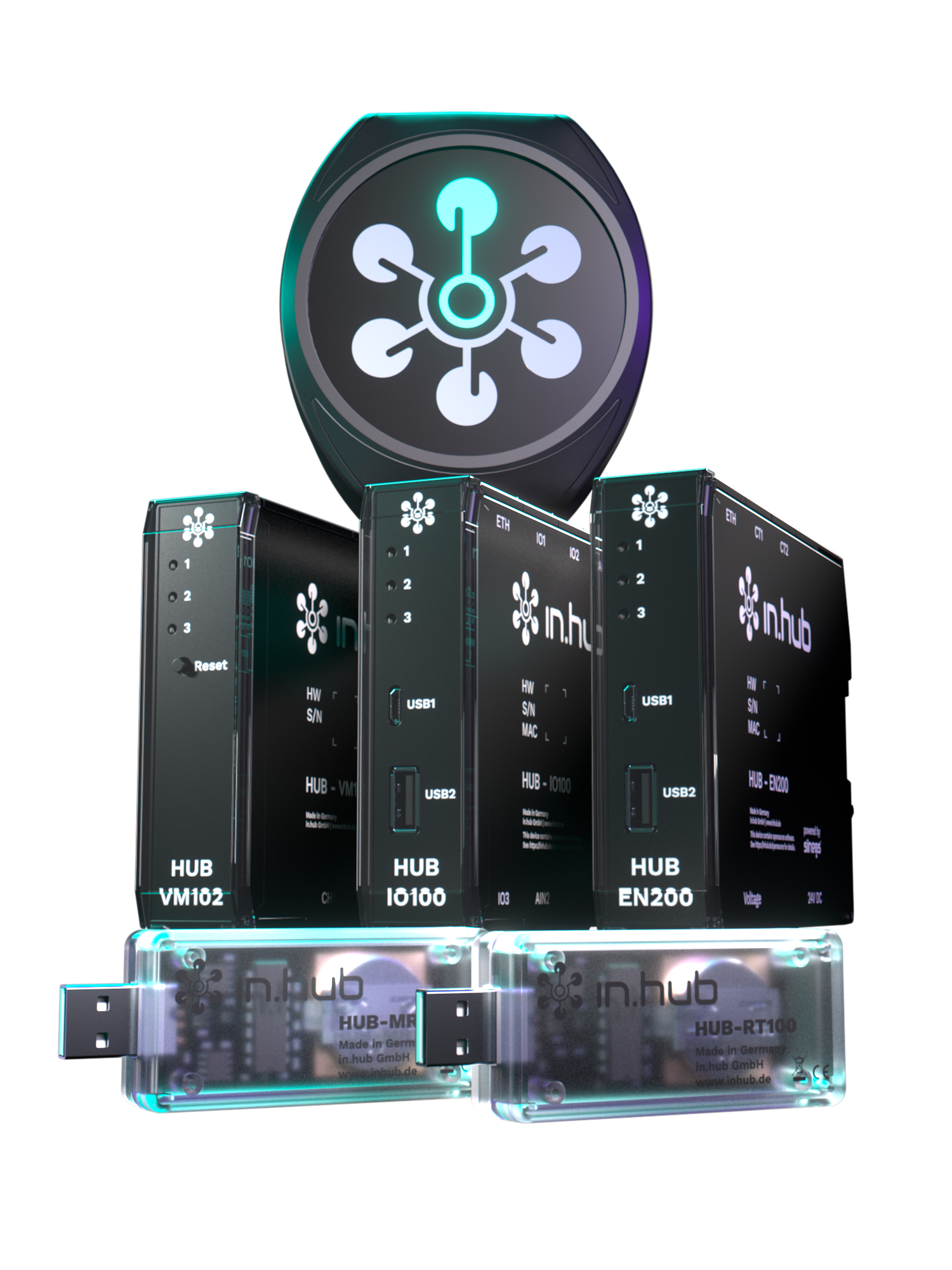

HUB-EN200
HUB-VM102
HUB-IO100
processor
CPU: NXP® i.MX6 ULL Single 1 x Arm®Cortex®- A7 @ 800 MHz 32 Bit
memory
RAM: 1 GB DDR3L RAM 16 bit; Flash: 4 GB eMMC
supply voltage
24 V DC ± 10 %
interfaces
3 x voltage inputs 1~ or 3~, 230 V / 400 V, 1 x N conductor 50 or 60 Hz Mains frequency, 4 x AC current sensors 0.1 A to 600 A; Ethernet 1x100; 1 x USB2.0 type Micro-B; 1 x USB2.0 Type-A; Optional USB module (433MBit/s 5GHz, 200MBit/s 2.4GHz); optional 4G LTE industry USB modem EU / NA
HMI
permissible temperature ranges
Storage: -40 °C to 85 °C Operation: 0 °C to 50 °C
dimensions
132 mm x 110 mm x 25 mm
protection class
IP20
status
from Q2 2024
Arm®Cortex-M4 @ 216 MHz 32 Bit
RAM: 358 kB + 128 MB fast RAM / external RAM 16 MB; Flash: 1 MB
24 V DC ± 10 %
2 digital-IN for trigger and speed; 2 x IEPE for vibration and acoustic sensors, Frequency range: 0.5 ... 10 kHz synchronised data acquisition of both measuring channels; Ethernet 1x100
Storage: -40 °C to 85 °C Operation: 0 °C to 50 °C
132 mm x 110 mm x 25 mm
IP20
in series
CPU: NXP® i.MX6 ULL Single 1 x Arm®Cortex®-A7 @ 800 MHz 32 Bit
RAM: 256 MB DDR3L (16 bit) Flash: 512 MB
24 V DC ± 10
12 x digital-IN - 6 x digital-OUT; 6 x analogue IN; 2 x analogue OUT; Ethernet Mbit/s1 x 100 Mbit/s; 1 x USB2.0 type Micro-B; 1 x USB2.0 Type-A; optional USB module (433MBit/s 5GHz, 200MBit/s 2.4GHz); optional 4G LTE industry USB modem EU / NA
Storage: -40 °C to 85 °C Operation: 0 °C to 50 °C
139 mm x 100 mm x 25 mm
IP20
from Q2 2024
HUB-RT100-HUB-MRT100
Prozessor
-
Speicher
F-RAM: 1 Mbit (128 K × 8) ; 10^14 Schreib- und Lesezyklen
Stromversorgung
4,75 - 5,25 V DC
Schnittstellen
-
HMI
Steckkontakt USB-A
Temperaturbereich
Lagerung: -40 °C bis 85 °C Betrieb: 0 °C bis 50 °C
Maße
65 mm x 30 mm x 15,5 mm; 77,2 mm x 30 mm x 15,5 mm inkl. Stecker
Schutzklasse
-
Status
in Serie
